Crystal Oscillator Principle Circuit

Published:2011/5/10 3:56:00 Author:Sharon | Keyword: Crystal Oscillator | From:SeekIC

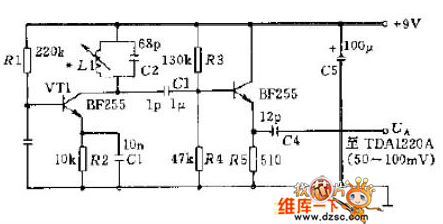

Figure shows a simple oscillator which can be used in receiver. Output Oscillation signal can be connected to operational amplifier TDA1220A pin 1 (the amplitude of the output voltage UA is about 50 ~ 100mV).
