DIFFERENTIAL_PAIR

Published:2009/6/25 21:25:00 Author:May | From:SeekIC

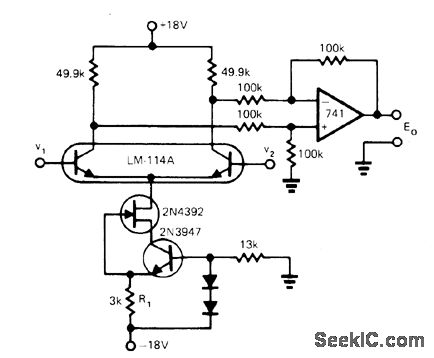

Conventional differential amplifier circuit provides differential-mode gain of 96, common-mode input resistance of 500 megohms, CMRR of 106 dB, and current-source output resistance greater than 1 gigohm. Article gives design equations.-R. C. Jaeger and G. A.Hellwarth, Differential Cascade Amplifier Offers Unique Advantages, EDN Magazine, June 5, 1974, p 78 and 80.
