Differential input/output gain programmable amplifier circuit

Published:2011/8/30 21:23:00 Author:Jessie | Keyword: Differential input/output, gain programmable, amplifier | From:SeekIC

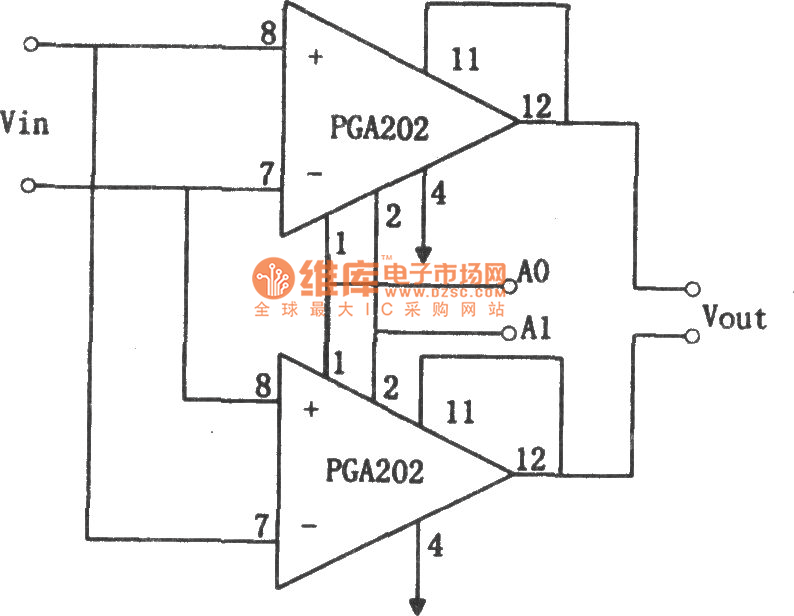

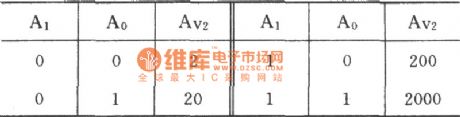

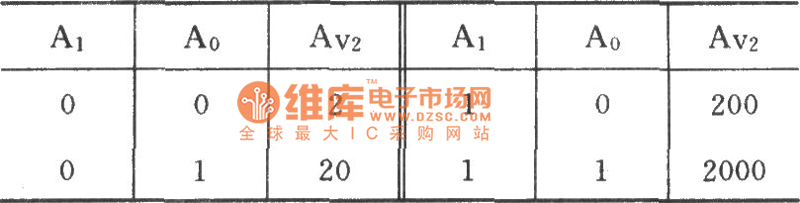

As shown in the chart, the circuitis thedifferential input/output gain programmable amplifier circuit. This circuit is composedof two pieces of PGA202 integrated circuits. PGA202 is mosfet input instrument integrated amp, and its gain has four different values: 1, 10, 100 and 1000. In circuit A0 (pin 1) and A1 (pins 2)are gain control terminals. when A0 and A1 are at different levels ( 1 or 0 ),their gainvalues aredifferent. Because here is two amplifier circuits using parallel form, thus circuits' total gain is twice of the monolithic gain , namely Vo = 2Av1Vi. Av1 ismonolithic amplifier circuit's gain, so the circuit's total gain is Av2 = 2Av1. CorrespondingAv2's valuesalso have four: 2, 20, 200, 2000. The relationship betweenthe total gain Av2 and gain control ports A0, A1 is listed in table.
