Double MOS Memory Interface Circuit

Published:2011/5/18 9:43:00 Author:Joyce | Keyword: Double MOS, Memory , Interface | From:SeekIC

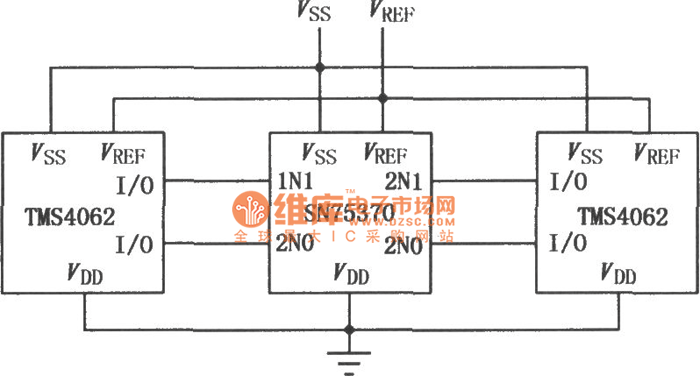

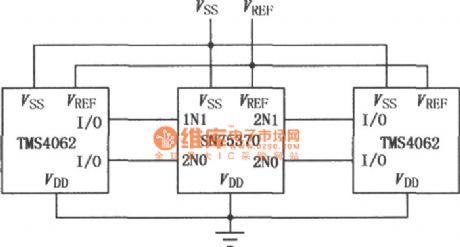

SN75370 is a monolithic integrated read/write interface circuit, which can be used as input/output interface in 4062 and in MOS RAM and TTL circuit of the same type. It can be connected directly with I/O interface of similar MOS RAM like 4062 . When it is written into operation, the drive can provide a complementary high voltage output with a high sensitive read operation.TTL will input with compatible diode clamp of DTL,and output with compatible data of DTL .The output endof data can act as AND connection. And the power supply has a extensive range. As shown in the figure is the interconnection graph of SN75370 and 4062.
