ELECTRET_MIKE_PREAMP_WITH_PTT_CIRCUIT

Published:2009/7/13 1:41:00 Author:May | From:SeekIC

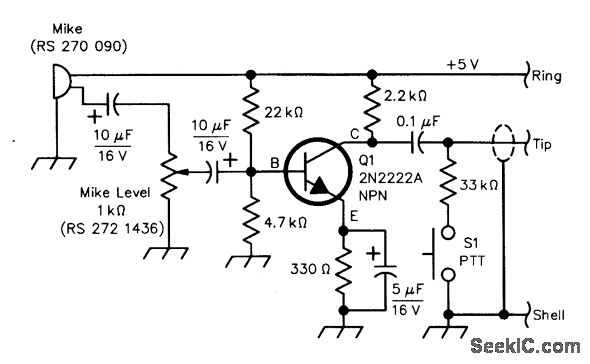

The schematic of electret mike element and amplifier circuit All resistors are 1/4-W units. The mike connector is an RS 274-284.
