Eyesight Protection Timer Circuit Composed of 555

Published:2011/5/17 5:41:00 Author:Joyce | Keyword: Eyesight Protection, Timer, Composed of 555 | From:SeekIC

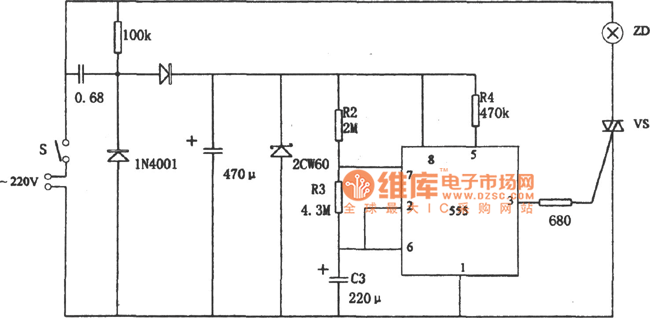

As shown in the figure is the eyesight protection timing circuit. This circuit uses 555 , R2, R3, R4 and C3 to constitute a pulser of variable duty ratio, which will control the bi-direction thyristor VS to make the desk lamp illume at a certain time and put out for a short time ,in order to ensure that the readers` eyes could get rest while reading to protect their eyesight.The desk lamp will put out for 10 minutes every 50 minutes.
