Gain for 1/2 precision amplifying circuit (INA105)

Published:2014/5/22 21:06:00 Author:lynne | Keyword: Gain for 1/2 precision amplifying circuit (INA105), INA105 | From:SeekIC

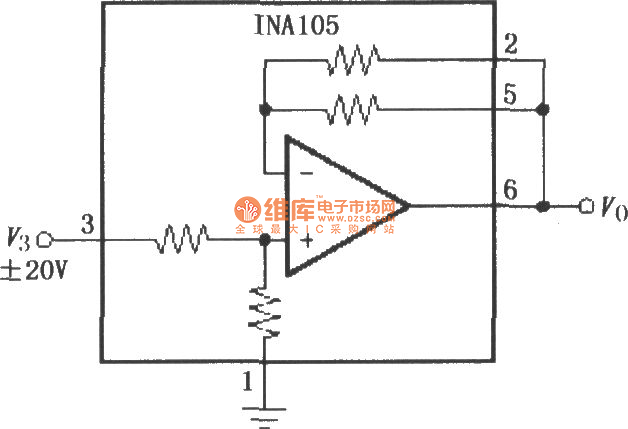

Gain for 1/2 precision amplifying circuit (INA105) as shown: As shown for gain = 1/2 precision amplifying circuit. The circuit is connected the two foot to 5 foot ably, internal two Ω 25 k resistor in parallel, constitute a gain for 1/2 in-phase amplifier, the output voltage Vo = 1/2 v3, gain error = 0.01% (maximum).
