High input impedance rapidly inverting amplifier circuit diagram

Published:2012/12/19 2:43:00 Author:Ecco | Keyword: High , input impedance, rapidly , inverting amplifier | From:SeekIC

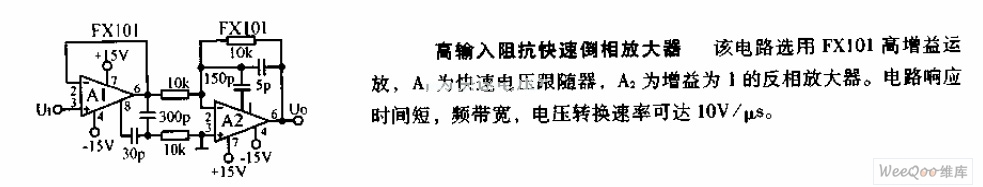

The circuit uses FX101 high gain op amp, A1 is a rapid voltage follower, A2 is an inverting amplifier with the gain of 1. The circuit response time is short, frequency bandwidth is wide, voltage slew rate is up to 10V/μs.
