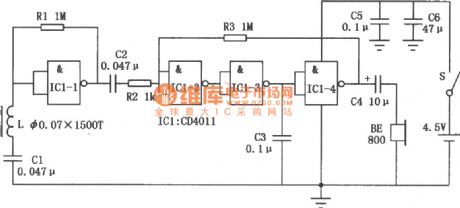

Inductive headset circuit

Published:2011/4/26 9:13:00 Author:TaoXi | Keyword: Inductive headset | From:SeekIC

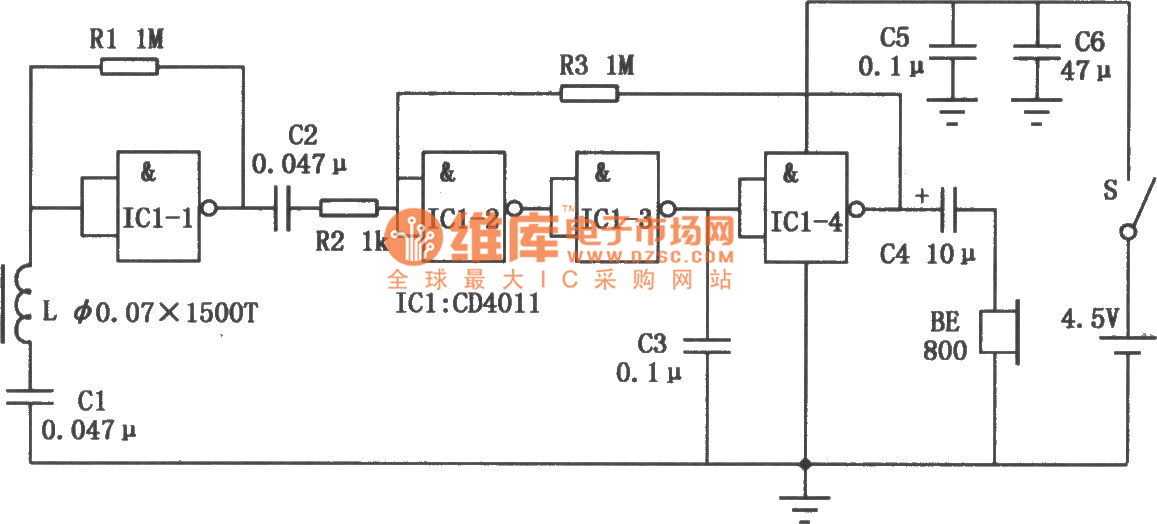

The inductive headset can be used in electronic teaching, home television and stereo audio signal wireless reception applications, this device eliminates the inconvenience of headphone cable, and avoid to interfere other people's rest and study. This circuit is composed of the four NAND gate integrated circuit CD4011 and some external components, the circuit is simple and has excellent sound quality, it is easy to make.
