Low Brightness Measurement Circuit

Published:2011/4/24 19:53:00 Author:Christina | Keyword: Low Brightness, Measurement | From:SeekIC

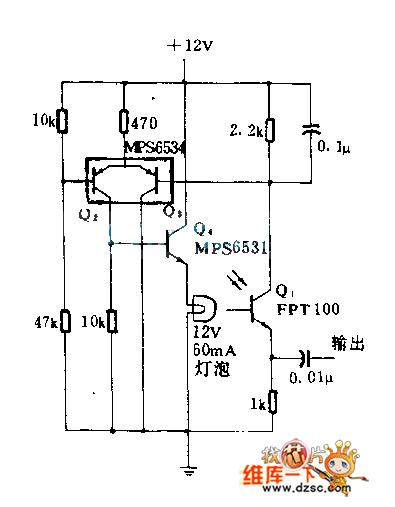

This circuit uses the light to bias the phototransistor Q1 to improve the response time, so we can get the maximum photosensitive sensitivity.
