Low_noise_wide_bandwidth_ampliffer

Published:2009/7/23 21:30:00 Author:Jessie | From:SeekIC

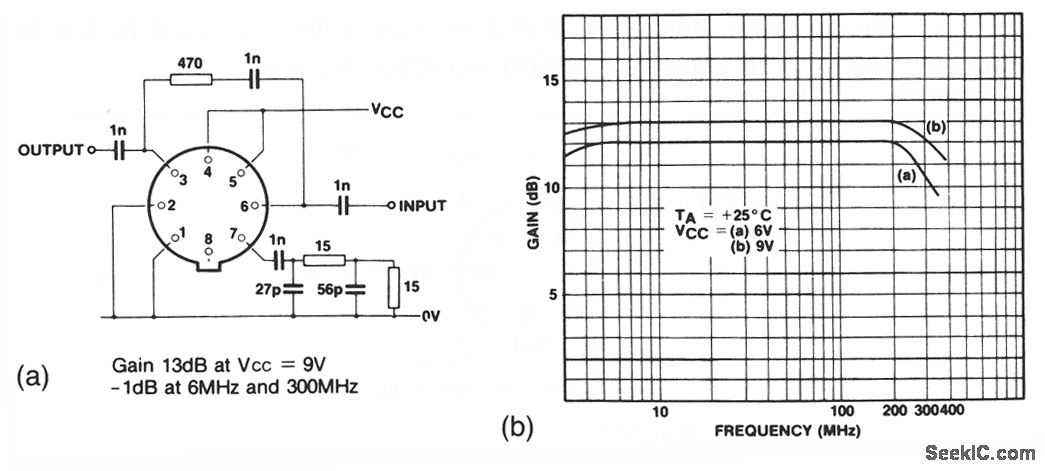

Figure 2-6A shows an SL560 used as a wide-bandwidth amplifier.Figure 2-6B shows the bypical frequency response.
