M5218AP-operational amplifier integrated circuit diagram

Published:2011/5/9 1:10:00 Author:Nicole | Keyword: operational amplifier | From:SeekIC

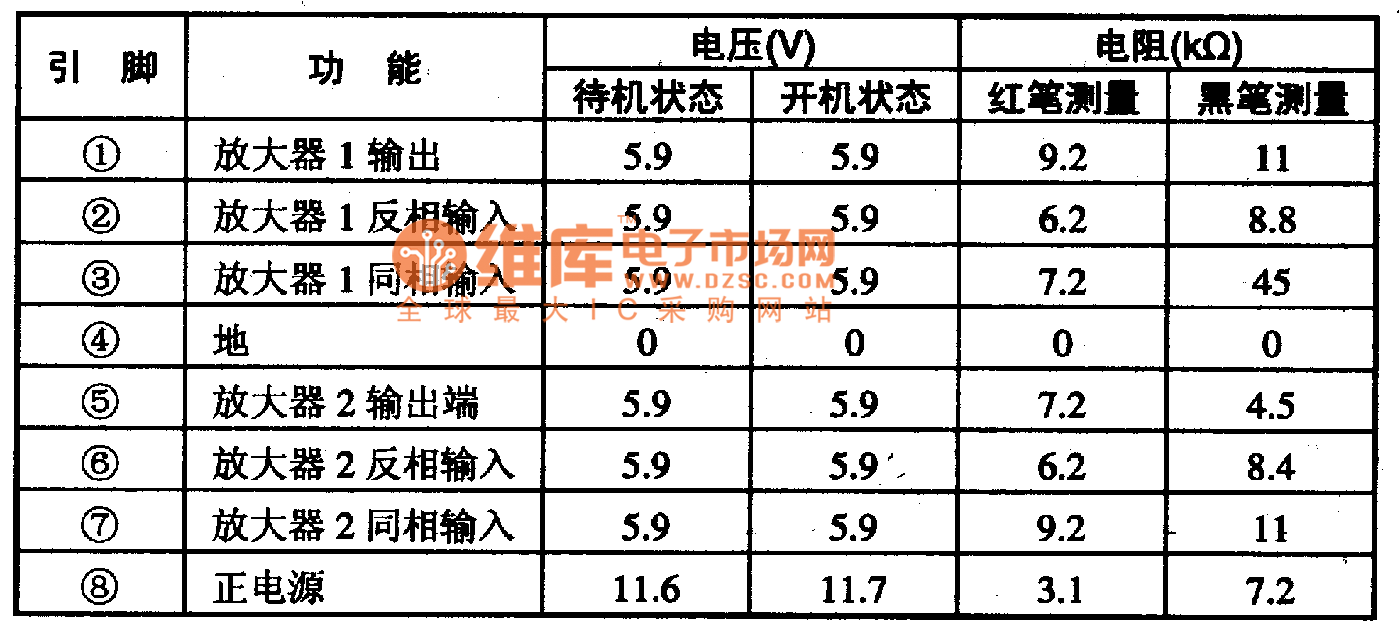

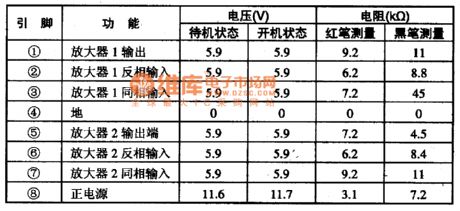

M5218AP is a common operational amplifier integrated circuit which is produced by Mitsubishi Corp, it is widely used in large screen and other screen color television, audio system, computer and its diaplay and all kinds of electric appliances electronic control circuit. 1. functions and features M5218AP integrated circuit contains two ways operational amplifier with same functions. 2. pin function and data M5218AP integrated circuit adopts 8-foot dual in-line package, it is applied to ChangHong CN一15 movement color television, the pin function and data of this integrated circuit is shown in the table1.
