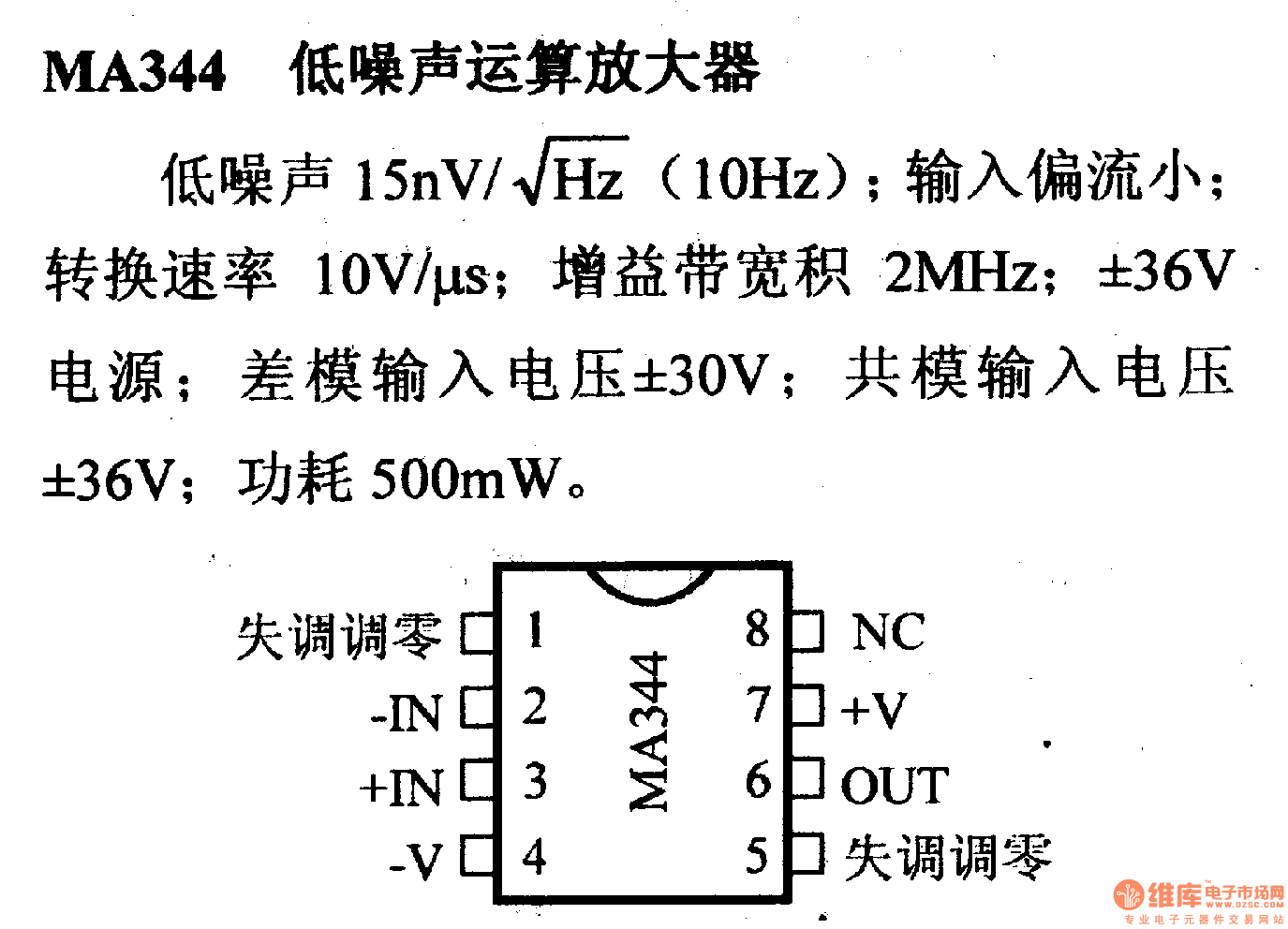

MA344 low-noise op amp and its pin main characteristics

Published:2012/12/24 2:19:00 Author:Ecco | Keyword: low-noise , op amp , pin main characteristics | From:SeekIC

Low noise is 15nV / √ ¯ Hz (10Hz); small input bias; conversion rate is 10V/μs; Gain Bandwidth Product is 2MHz; ± 36V power supply; differential-mode input voltage is ± 30V; common-mode input voltage is ± 36V; power consumption is 500mW.
