MC1747/MC1747C operational amplifier and its pin main characteristics

Published:2012/12/25 1:37:00 Author:Ecco | Keyword: operational amplifier , pin main characteristics | From:SeekIC

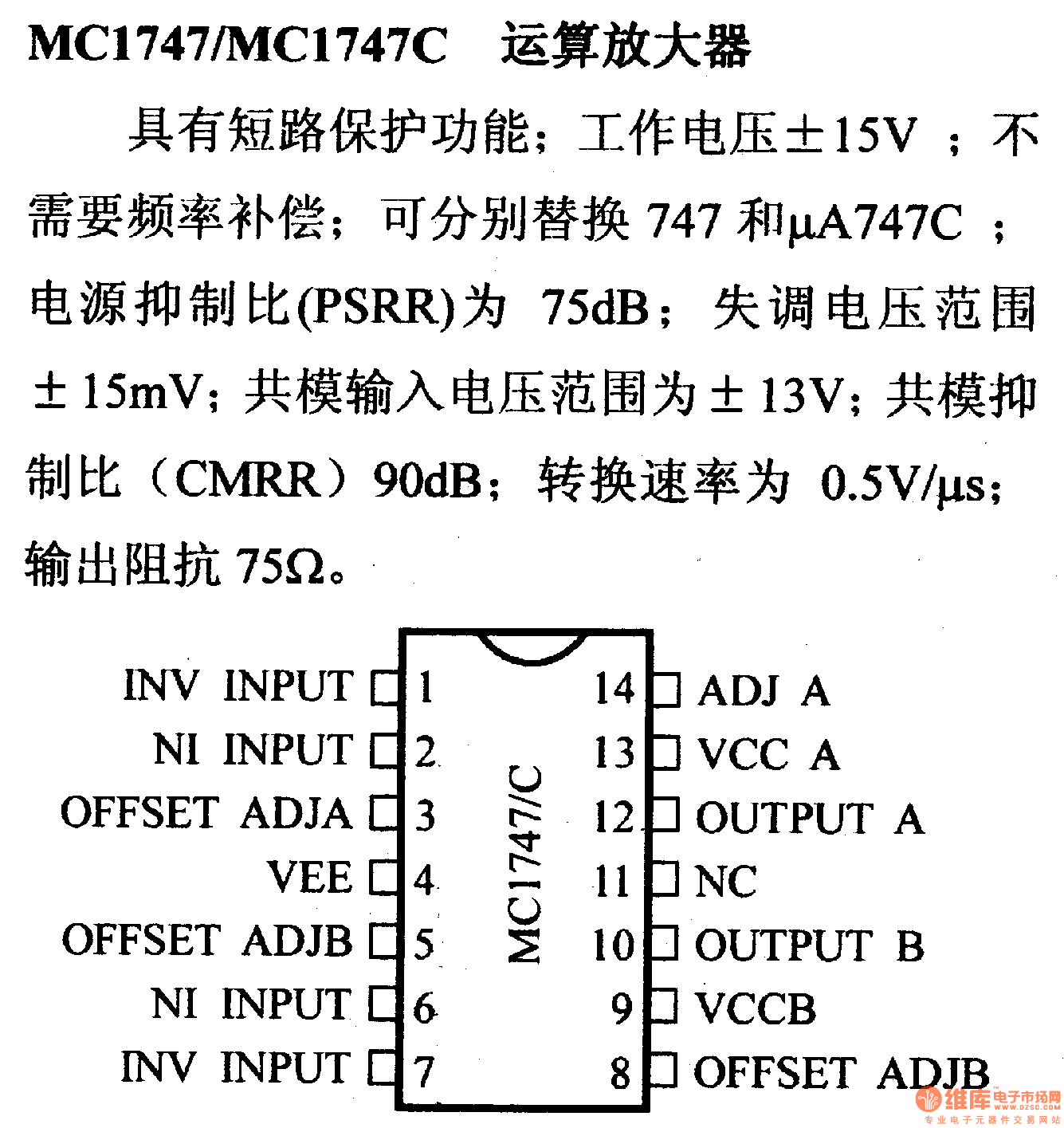

It has short circuit protection; operating voltage is ± 15V; it does not require frequency compensation; it can replace 747 and μA747C; supply rejection ratio (PSRR) is 75dB; offset voltage range is ± 15mV; common-mode input voltage range is ± 13V; CMRR (CMRR) is 90dB; conversion rate is 0.5V/μs; output impedance is 75Ω.
