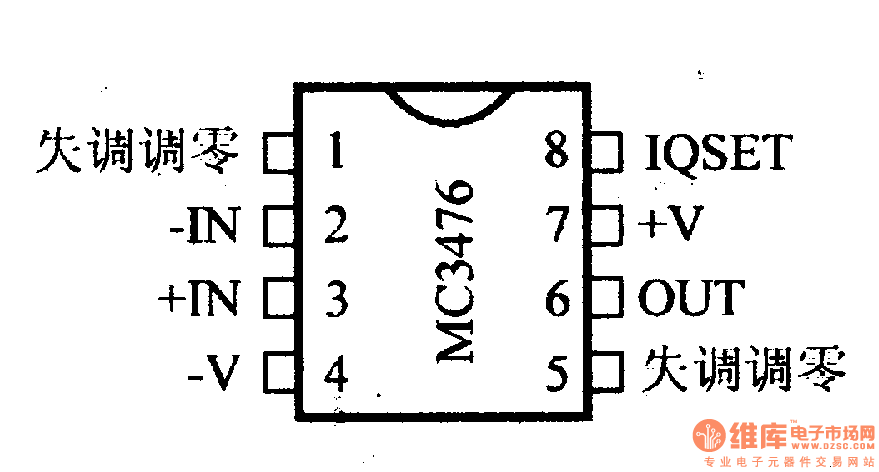

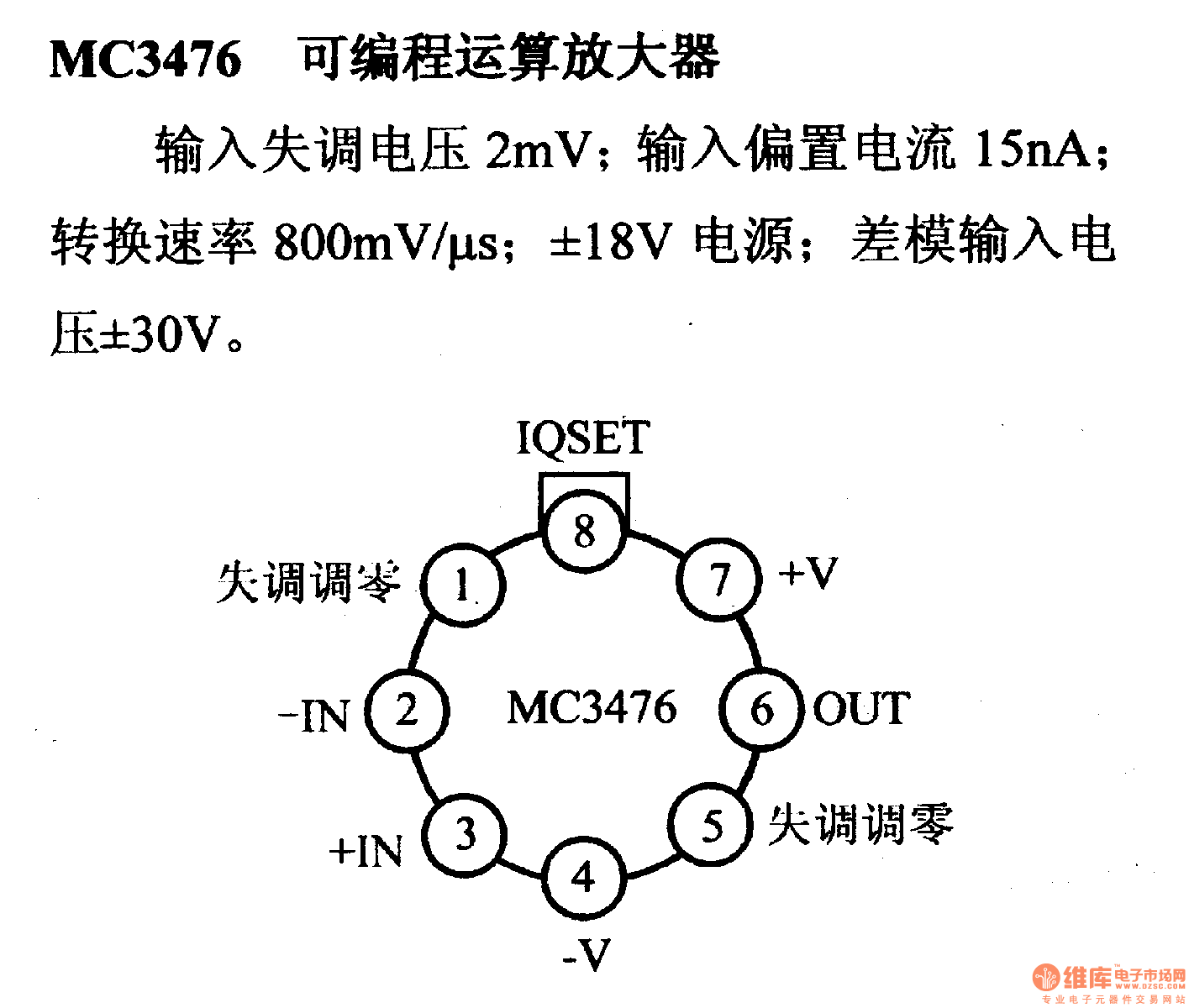

MC3476 programmable op amp and its pin main characteristics

Published:2012/12/25 1:22:00 Author:Ecco | Keyword: programmable , op amp , pin main characteristics | From:SeekIC

2mV input offset voltage; 15nA input bias current; 800mV/μs conversion rate; ± 18V power supply; ± 30V differential-mode input voltage.
