MNI871675T6S--the single chip microcomputer integrated circuit

Published:2011/6/11 21:00:00 Author:qqtang | Keyword: single chip microcomputer, integrated circuit | From:SeekIC

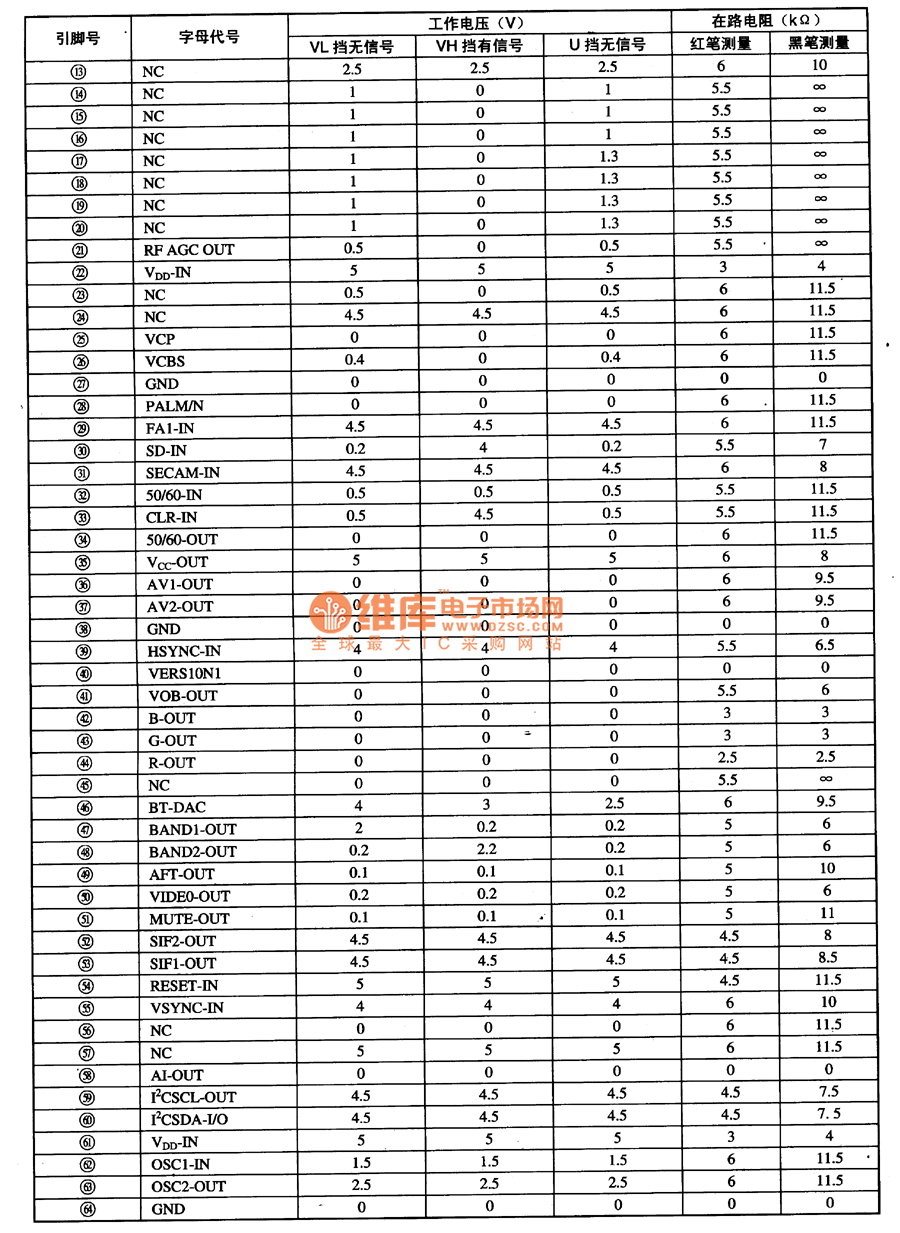

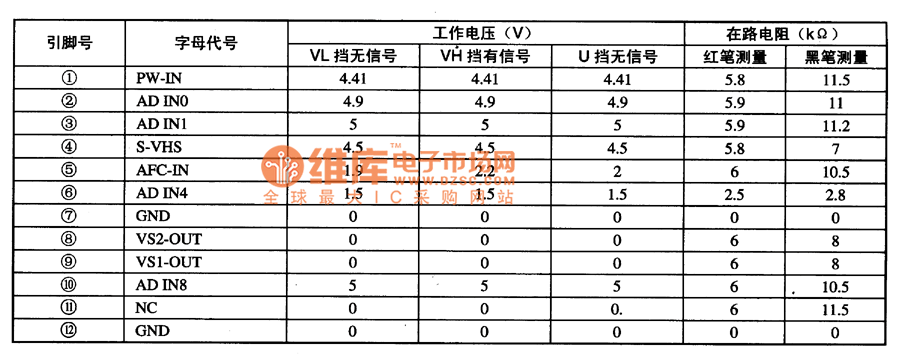

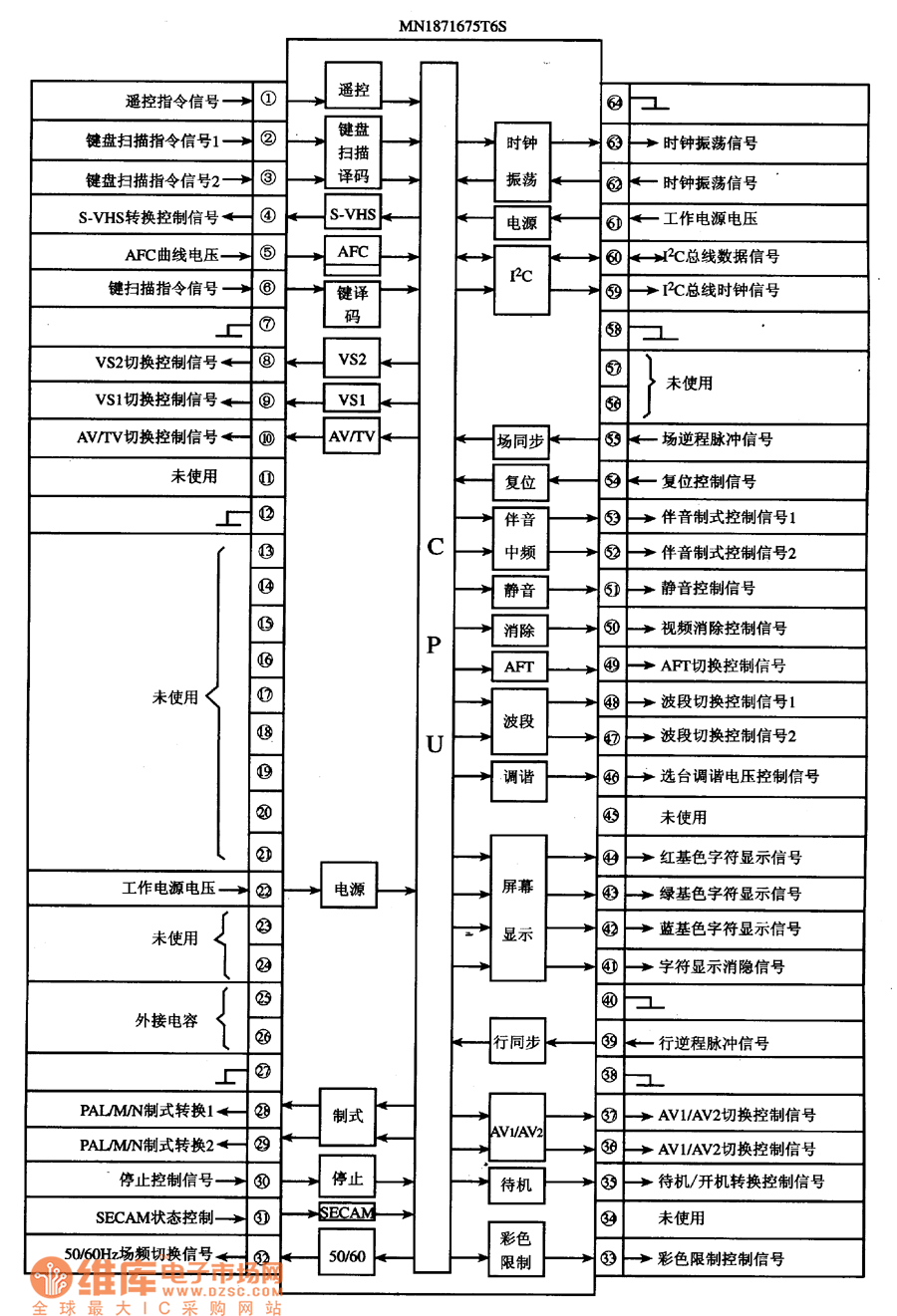

1.pin functions MNI871675T6S consists of the clock oscillating circuit, reset circuit,CPU, I2C general circuit, key scanning order decoder, system converting circuit, screen display, AV/TV shifting control circuit, and the other control and affiliated function circuit, etc.2.MNI871675T6S is in 64-pin dual in-line package, whose pin letter codes and data are listed in the table, and its internal circuit, pin functions and signal flow are shown in the figure.The pin letter codes and data of MNI871675T6S
