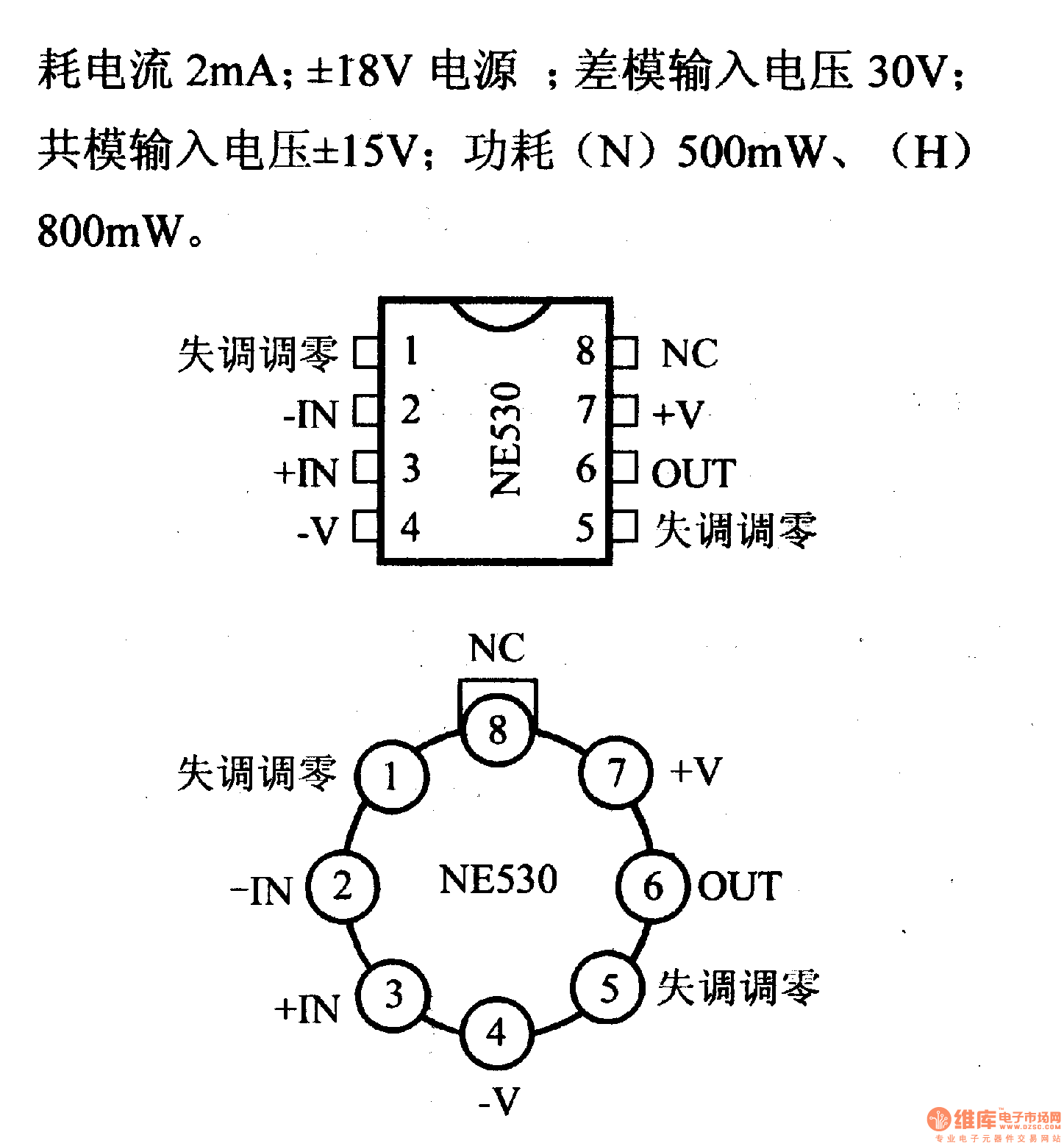

NE530 high - speed operational amplifier and its pin main characteristics

Published:2012/12/25 1:10:00 Author:Ecco | Keyword: high - speed , operational amplifier , pin , main characteristics | From:SeekIC

Input offset voltage is 2mV; the temperature drift is 6μV / ℃; bias current is 65nA; Gain Bandwidth Product GB = 3MHz; conversion rate is 25V/μs; noise is 30nV / √ ¯ Hz ( 1kHz); Current consumption is 2mA; ± 18V power supply; differential-mode input voltage is 30V; common-mode input voltage is ± 15V; power is 500mW , 800mW.
