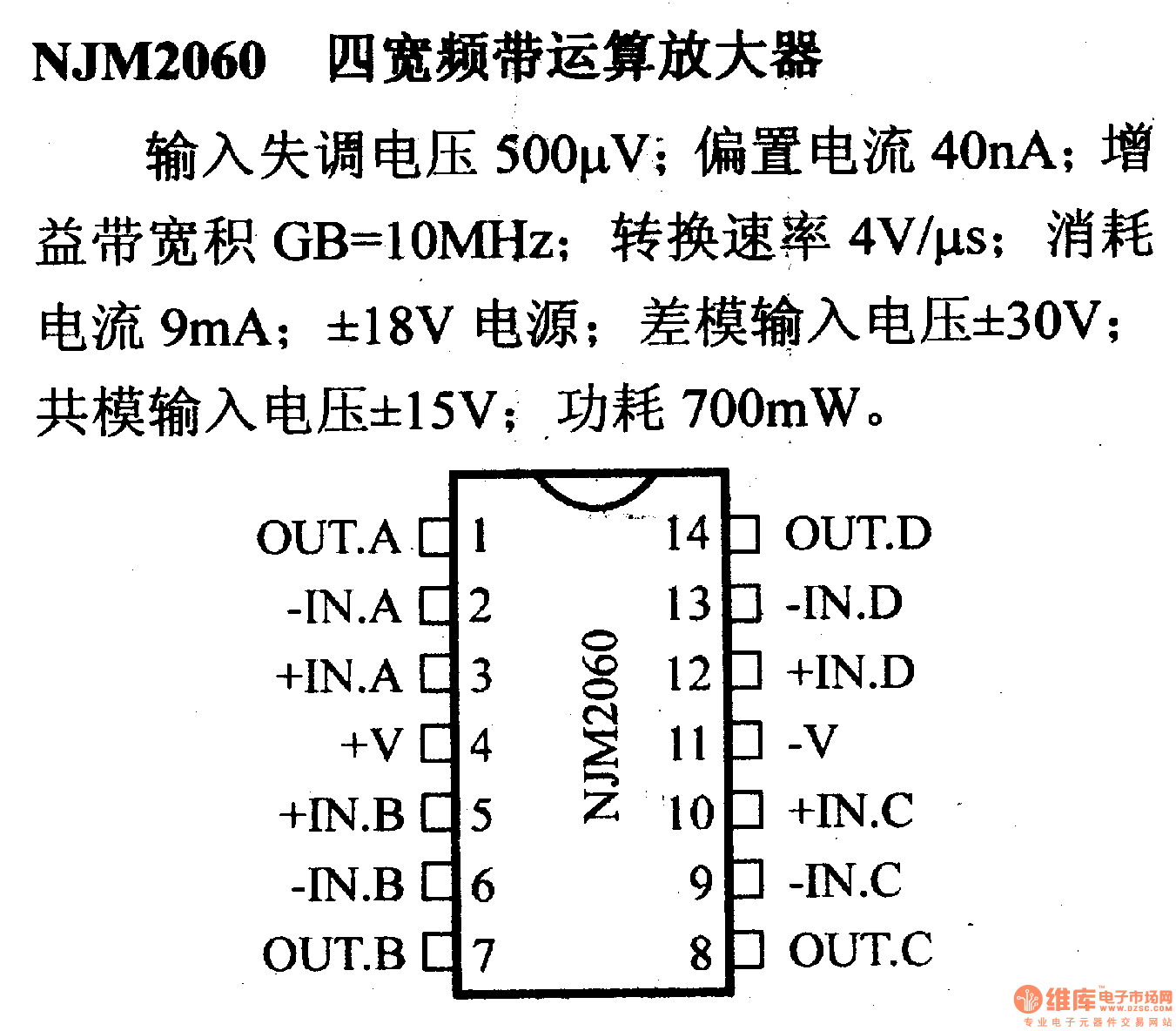

NJM2060 four wideband op amp and its pin main characteristics

Published:2013/1/18 2:55:00 Author:Ecco | Keyword: four wideband op amp , pin main characteristics | From:SeekIC

The input offset voltage is 500μV; bias current is 40nA; gain bandwidth product is 10MHz; conversion rate is 4V/μs; Current consumption is 9mA; power supply is ± 18V; differential-mode input voltage is ± 30V; common-mode input voltage is ± 15V; power is 700mW.
