Norton_amplifier_with_a_negative_supply

Published:2009/7/17 4:13:00 Author:Jessie | From:SeekIC

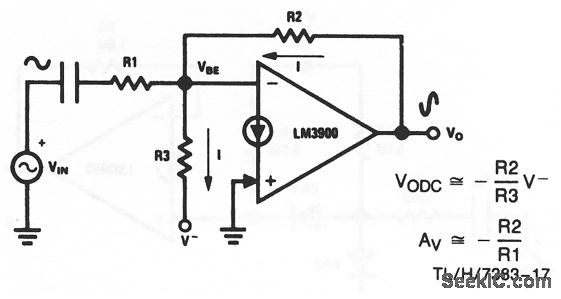

This circuit uses one section of an LM3900 to form an ac amplifier with a negative power supply. The dc biasing current, I, is established by the negative supply voltage through R3, and provides a very stable output-quiescent point for the amplifier. National Semiconductor, Linear Applications Handbook 1991 p 221
