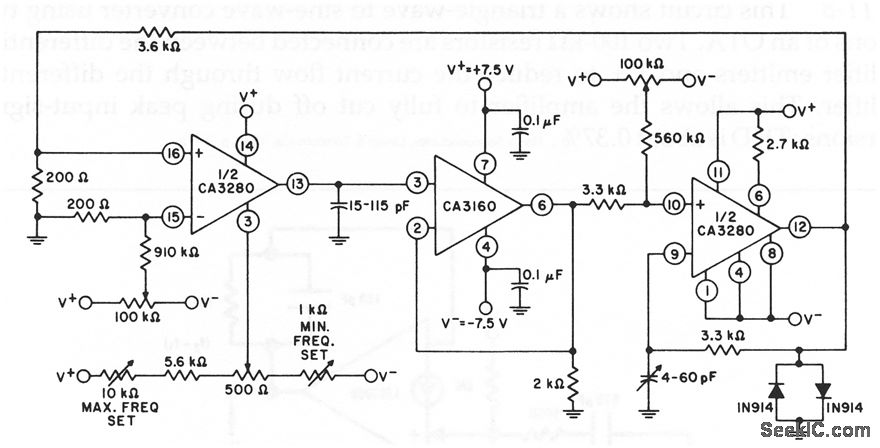

OTA_single_control_function_generatorminimum_component

Published:2009/7/25 1:09:00 Author:Jessie | From:SeekIC

This circuit is similar to that of Fig.11-3,except that less components(and adjustments) are required.The frequency range is from 2 Hz to 1 MHz.
