One Transistor Amplifier/Detector

Published:2012/10/22 22:04:00 Author:muriel | Keyword: One Transistor , Amplifier, Detector | From:SeekIC

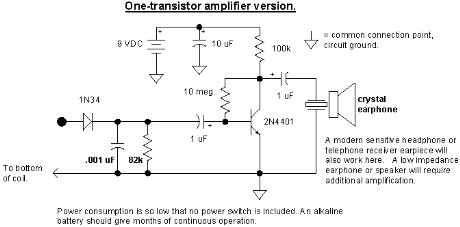

An amplifier may be added to boost the audio level as shown below. The current consumption of this amplifier is quite low and a power switch is not included. Disconnect the battery when the receiver is stored for long periods.
