μPC2002 9W Audio Power Amplifier Circuit

Published:2011/7/18 9:27:00 Author:Robert | Keyword: 9W, Audio, Power, Amplifier | From:SeekIC

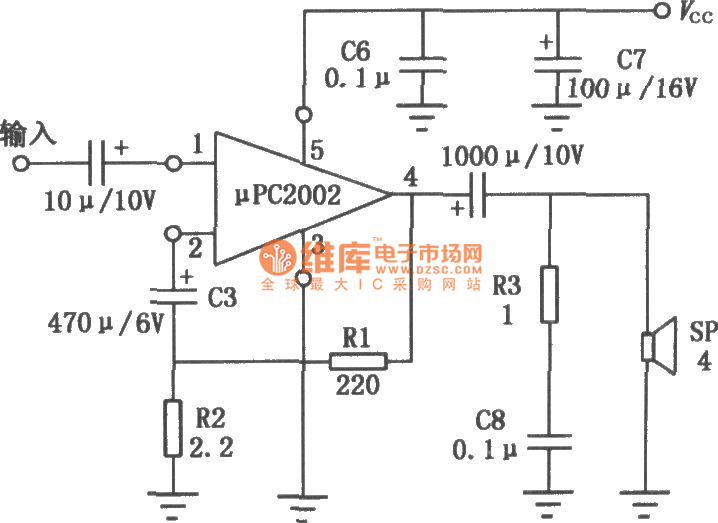

The μPC2002 is a audio power amplification IC which uses 5-pin single inline plastic package. It can be divided to H type and V type according to the shape of its lead wire. This circuit has a large output power and low distortion and low noise. It also has the low impact sound when starting.The circuithasprotection circuits for power surge, over voltage and load's short circuit and so on. So it is widely used in car stereo radio and used as audio power amplifier in videocorder. Its typical application circuit is shown in the picture.
