In-Phase Summation Circuit

Published:2011/7/16 6:46:00 Author:Robert | Keyword: In-Phase, Summation | From:SeekIC

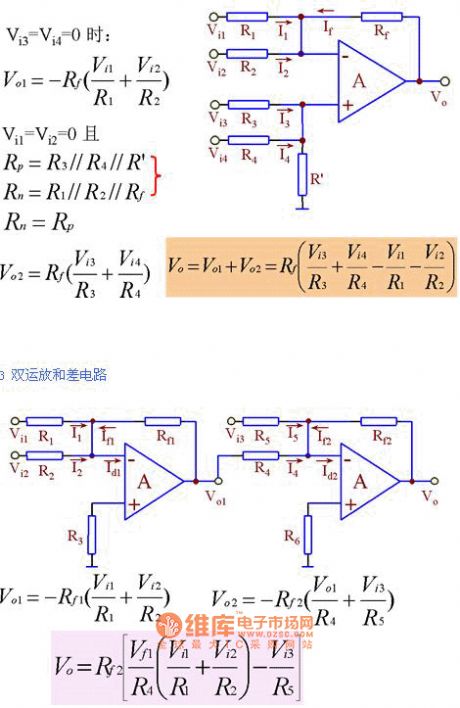

1.This is the in-phase summation circuit. With the concepts of virtual short circuit and virtual open circuit, we get the single operational amplifier summation-difference circuit anddual operational amplifier summation-difference circuit.
