P85C28OAER System Control Microcomputer Integrated Circuit

Published:2011/8/25 22:44:00 Author:Michel | Keyword: System Control , Microcomputer, Integrated Circuit | From:SeekIC

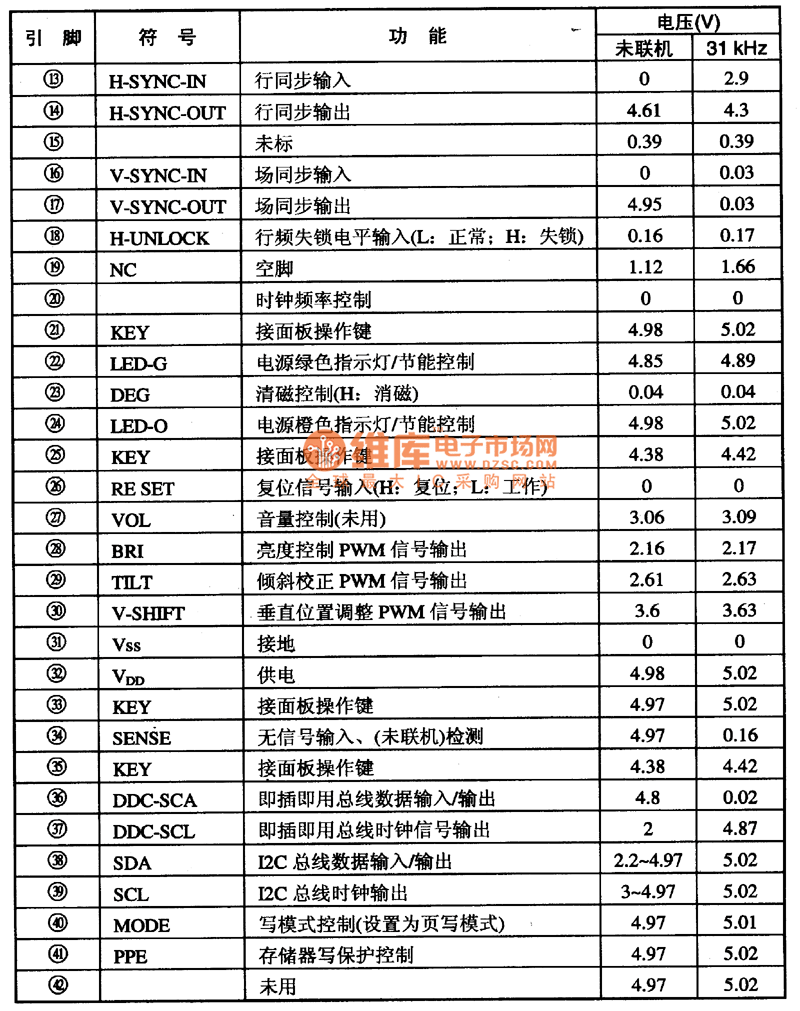

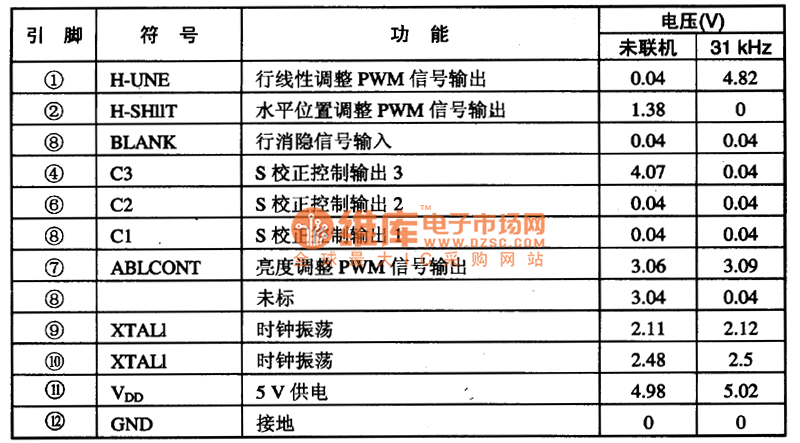

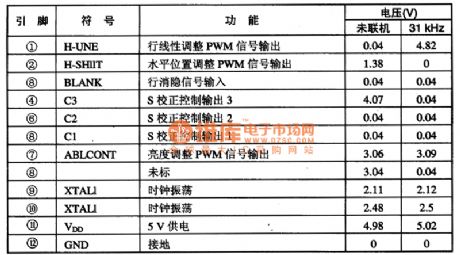

P85C28OAER is system control microcomputer integrated circuit which is widely used in control chip of color displays the Philips and Lenovo etc. First,Function Features P85C28OAER integrated circuit contains the I2C bus of large scale integrated circuit microcomputer.It not only has all kinds of analog control circuits, keyboard switch decoding circuit and kinds of distortion.It also tests contorl without siganls,saving energy control,memeory work means and other various auxiliary functions. Second,Pins Fuctions and DataP85C280AER adopts feet 42 DIP package and its pins functions and data is shown as table 1. Table 1:Pins Functions and Data ofP85C28OAER IC
