PORTABLE_CRO_UNBLANKING_AMPLIFIER

Published:2009/7/16 20:58:00 Author:Jessie | From:SeekIC

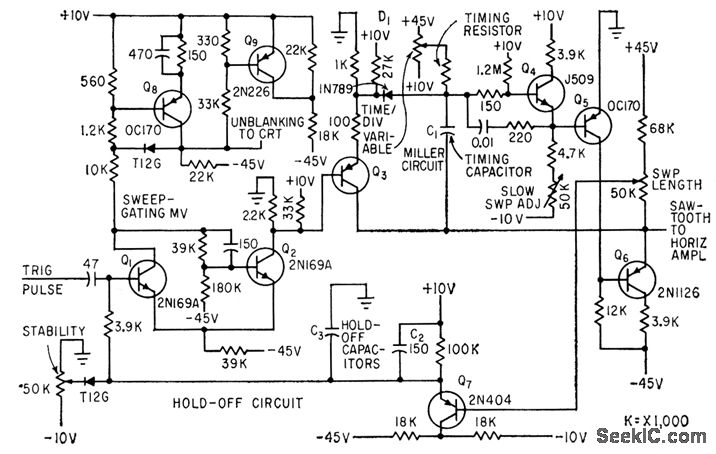

Supplies signal to turn on crt during sweep，Hold-off circuit insures that trace starts from same point on every sweep.-O. Svehaug and J.R. Kobbe,Battery-Operated Transistor Oscilloscope, Electronics, 33:12, p 80-83.
