PREFERRED_EMITTER_FOLLOWER

Published:2009/7/13 4:07:00 Author:May | From:SeekIC

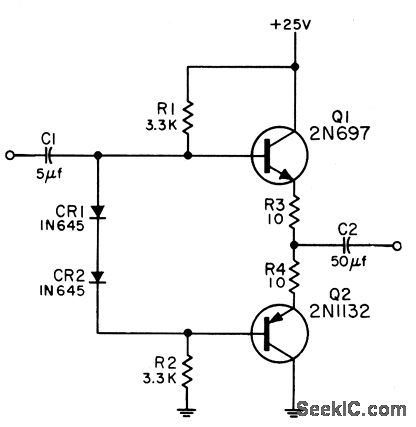

Used fo match high-impedance drcuit to low-impedance load. Will accept positive and negative pulses or sinusoidal input. Low output impedance for pulses resuhs in high operating speed into capadtive loads. Bandwidth for 600-ohm source impedonce is 50 cps to 3.5 iAc. Vohctge amplification is 0.8 ond power gain is 12 db.-NBS, Handbook Preferred Circuits Ncvy Aeronautical Electronic Equipment, Vol. II, Semiconductor Device Circuils, 1962, PSC 22 (originally PC 222), p 22-2.
