Photoelectric isolated amplifier circuit composed of the ISO100

Published:2011/8/15 2:25:00 Author:Rebekka | Keyword: Photoelectric isolated amplifier | From:SeekIC

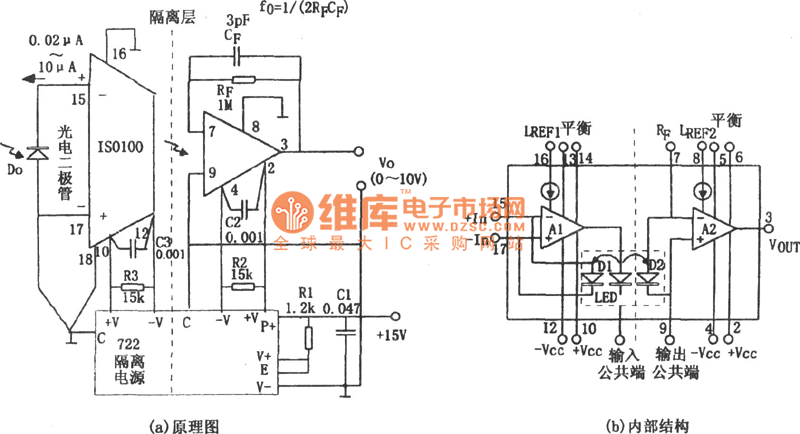

The figure shows the photoelectric isolated amplifier circuit. The photoelectric isolated amplifier can be used in the automatic control system, the data acquisition system, computer I/O interface and communications equipment. The photoelectric isolated amplifier is also called the photoelectric couplers, this device is a composite shell element that the light emitting components and the light components and packaging in the same relative set. The input and output contacts by light and ithas insulation to electric. It is the the solid component with completely an unique property and function.
