Power_op_amp_with_parallel_output

Published:2009/7/24 23:14:00 Author:Jessie | From:SeekIC

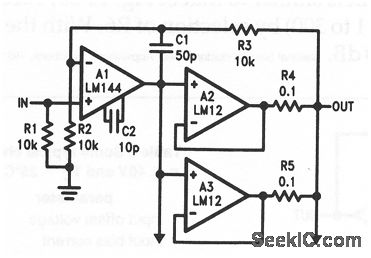

This circuit shows two LM12s (Fig. 10-46) connected in parallel to increase the load-current capability.
