RESISTOR_TESTER

Published:2009/7/21 7:59:00 Author:Jessie | From:SeekIC

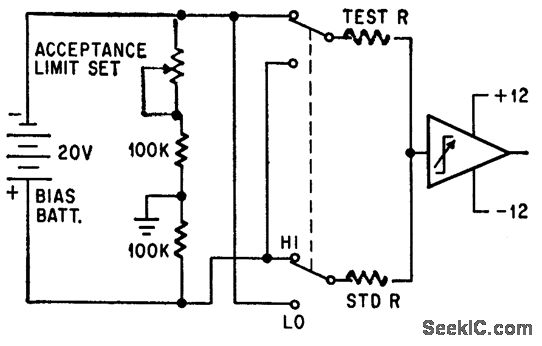

Operational trigger is tripped by bridge circuits when resistor under test is 0.11% high for switch position shown. Reversing switch gives same sensitivity for low resistors.-P. Lefferts, Operational Trigger For Precise Control, Electronics, 37:28, p 50-55.
