RF2320 linear general amplifier pin circuit

Published:2011/5/2 2:25:00 Author:Christina | Keyword: linear, general amplifier, pin circuit | From:SeekIC

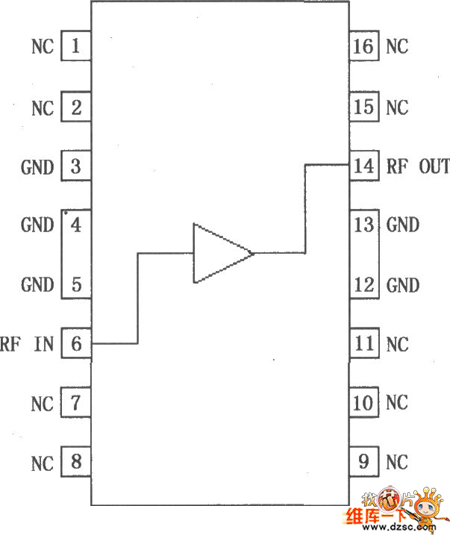

The RF2320 is one kind of general-purpose, low-cost, high-efficiency linear RF amplifier IC, this device has the GaAs heterojunction bipolar transistor (HBT) treatment, and it is designed for the cascade 75Ω gain circuit (Value of noise is less than 2dB), in the range of 5～1000 MHz, the gain flatness is better than 0.5dB, high linearity makes this device can be used in the cable and TV applications. Also the RF2320 can be used in wireless voice and data communications products' IF and RF amplification, the band up to 2500MHz, the device itself contains the 75Ω, the input impedance and output impedance and it supplies the 2:1 VSWR (Voltage Standing Wave Ratio). The RF2320 CATV can be used in distribution amplifier, cable modem, broadband gain blocks, laser diode driver, reciprocating-channel amplifier, base station applications. And the RF2320 is in the square bat-winged SOP-16 package, the pin out is as shown in figure.
