SHIFT_REGISTER_DRIVER

Published:2009/7/24 1:58:00 Author:Jessie | From:SeekIC

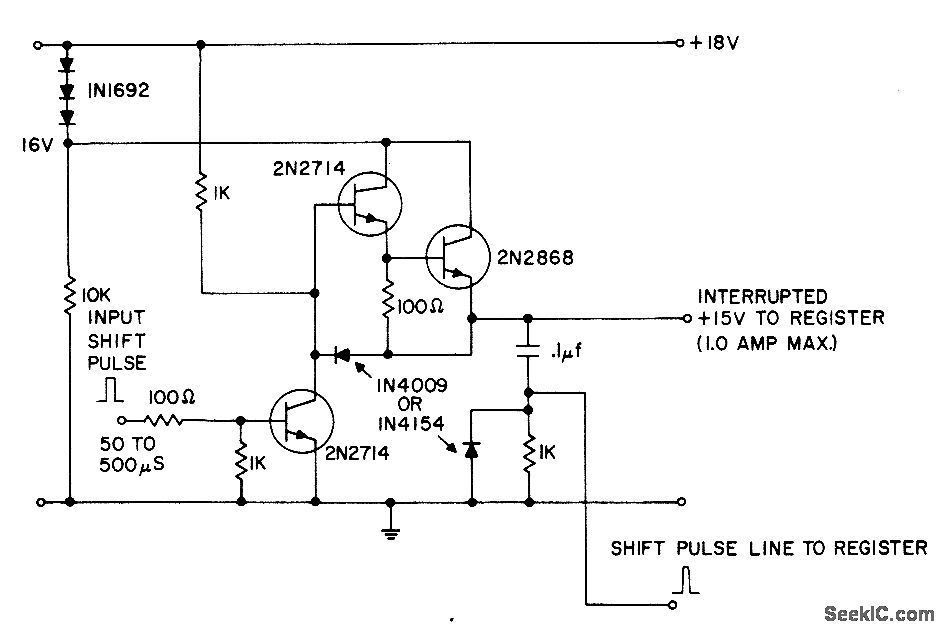

Shift pulse input saturates 2N2714, depriving Darlington combination of base drive. Resulting negative pulse generated on 15-V line is differentiated lo produce positive trigger pulse at its trailing edge.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 432.
