SID250O-D0BO--the RGB process integrated circuit

Published:2011/6/6 2:28:00 Author:qqtang | Keyword: RGB process, integrated circuit | From:SeekIC

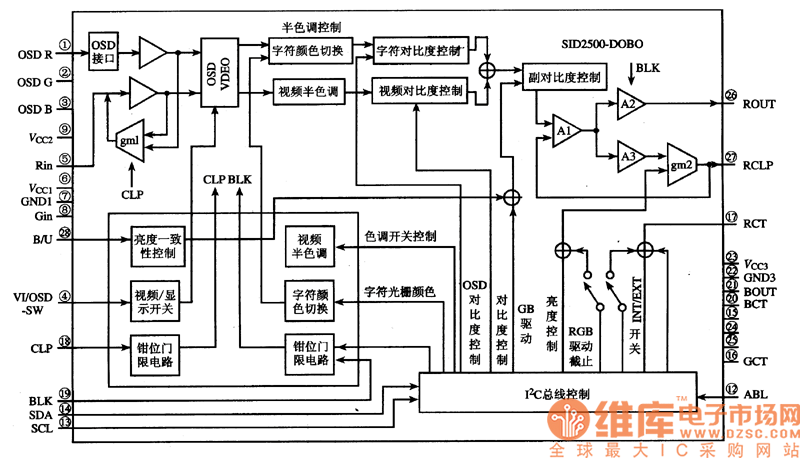

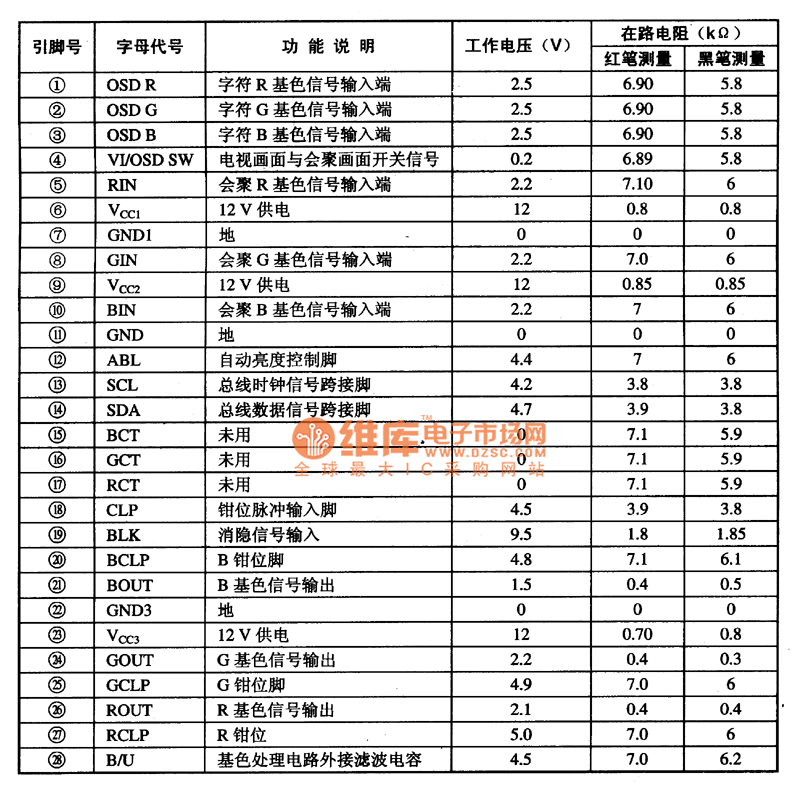

1. Function featuresSD250O-DOBO includes the lzC general control circuit, letter RGB base color signal process circuit, contrast ratio control circuit, OSD connector circuit, brightness conformity control circuit, clamp door limiting circuit, video/display switch circuit, letter color shift circuit, semi-hue control circuit, video half-hue circuit, brightness control circuit and other additional function circuits, whose internal circuit is in the figure.2.pin functions and dataSD250O-DOBO is in 28-pin dual in-line package.
