SN103832APG--the multi-function electric switch integrated circuit

Published:2011/6/5 9:31:00 Author:qqtang | Keyword: electric switch, integrated circuit | From:SeekIC

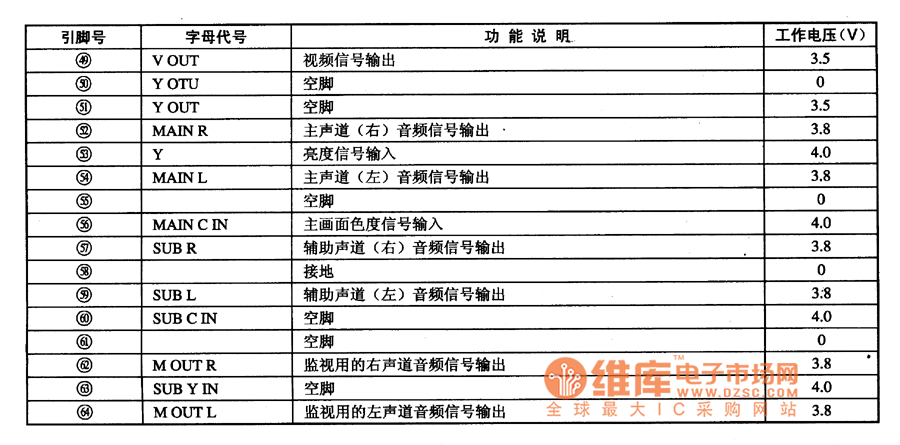

SN103832APG is a massive multi-function electric switch integrated circuit, which is widely used in Panasonic high class large screen cores of M17V, M18M(with PIP function) and M19(with PIP function).1.function introduction SN103832APG includes shift switch, I2C general connector, audio shift switch, power supply circuit and other additional function circuit. Its internal circuit is shown in the following picture.2.pin functions and dataSN103832APG is in 64-pin flat square package, whose pin functions and data are listed in the table.
