ST6367B1 FEJ --the single chip microcomputer integrated circuit

Published:2011/6/5 8:51:00 Author:qqtang | Keyword: single chip microcomputer, integrated circuit | From:SeekIC

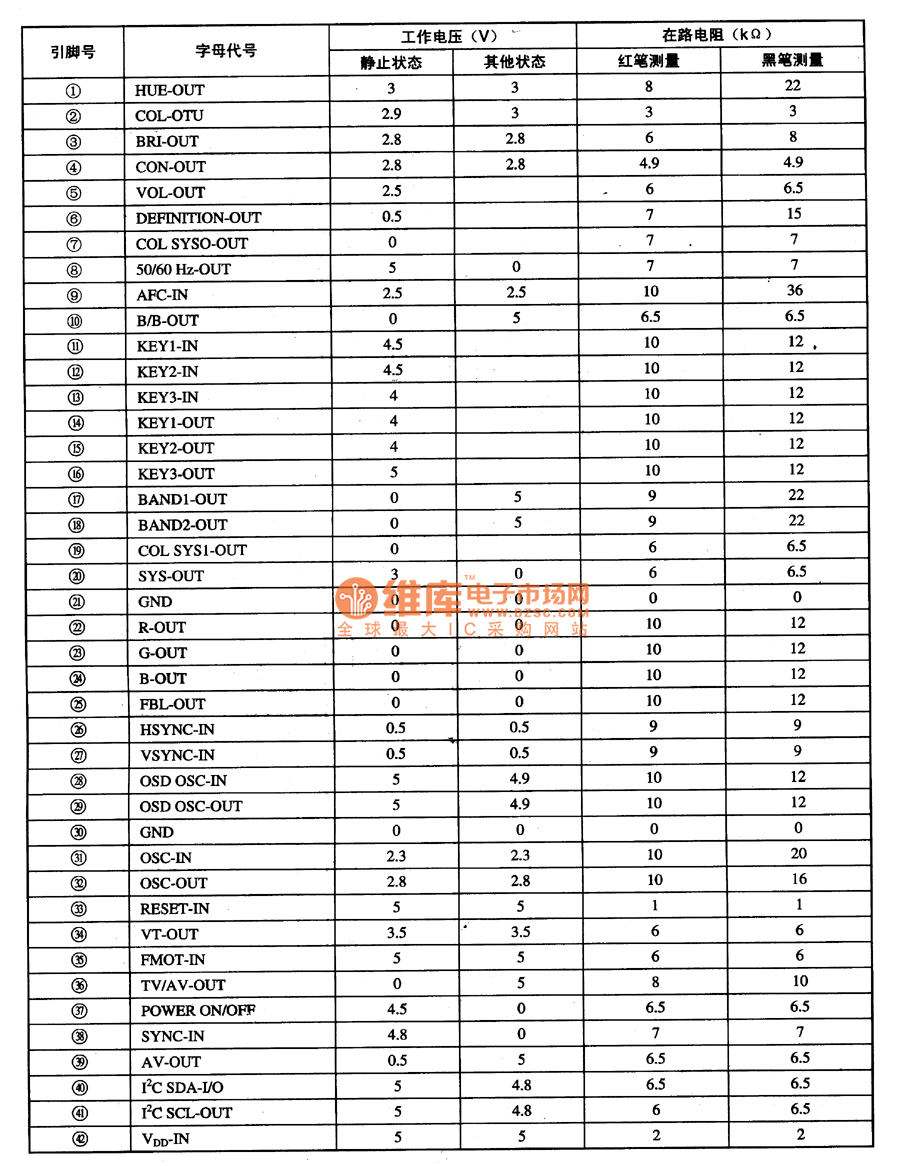

ST6367B1 FEJ is a single chip microcomputer integrated circuit, which is widely used in Konka large screen digital color TV.1.function featuresST6367B1 FEJ includes CPU, reset control circuit, clock oscillating clock, key order signal decoding circuit, I2C general control circuit, screen display circuit, remote signal process circuit, PAL/NTSC control circuit, and other control and additional circuits, whose internal circuit with pin functions and signal flow are shown in the figure.
