STV9379 field scanning output integrated circuit

Published:2011/6/28 3:13:00 Author:chopper | Keyword: field scanning, output, integrated circuit | From:SeekIC

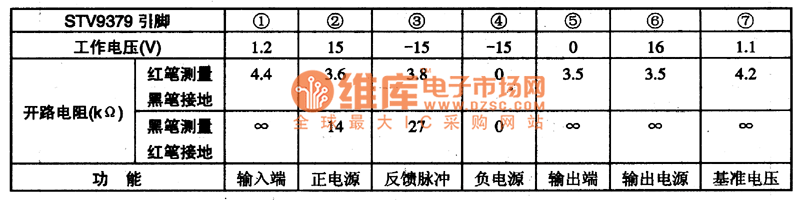

STV9379 is a special field scanning output integrated circuit and it is applied to Sony large-screen color TV widely as well as cassette mechanism large-screen color TV made in China of Sony cassette mechanism.1.function characteristicsSTV9306 integrated circuit includes field scanning output driving circuit,field scanning output circuit,voltage reference providing circuit,and other miscellaneous function circuit.2.function and data of pinsSTV9306 integrated circuit uses positive and negative power supply and adopts 7 pins single inline package and the function and data of pins of the integrated circuit are shown as chart 1.
