Published:2012/9/10 21:16:00 Author:Ecco | Keyword: Stereo Preamplifier | From:SeekIC

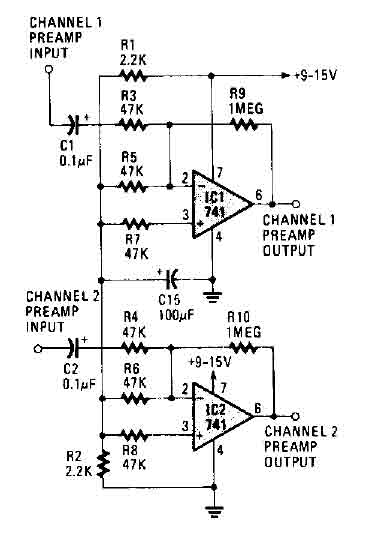

The circuit works with two 741 opamps and provides better than 20 dB gain in each channel. A better type op-amp will give a better noise figure and bandwidth. In this circuit, the sharp roll-off is at 20,000 Hertz.
