TA8106F double track headset drive integrated circuit

Published:2011/7/5 5:45:00 Author:chopper | Keyword: double track, headset drive, integrated circuit | From:SeekIC

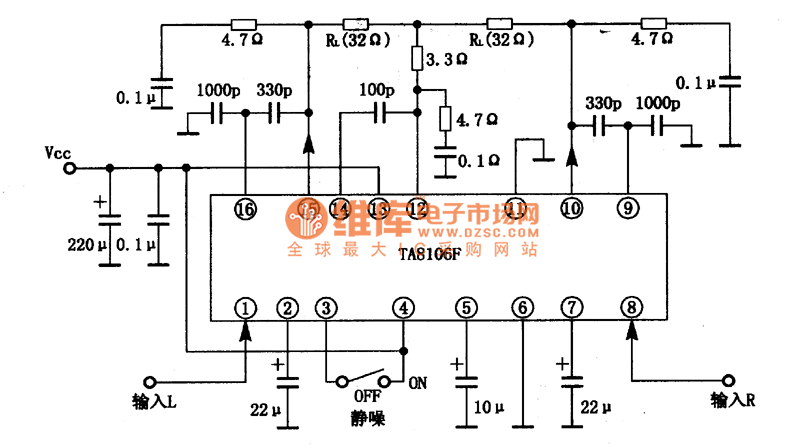

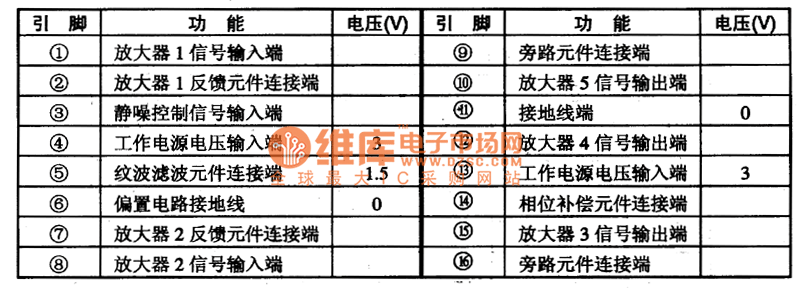

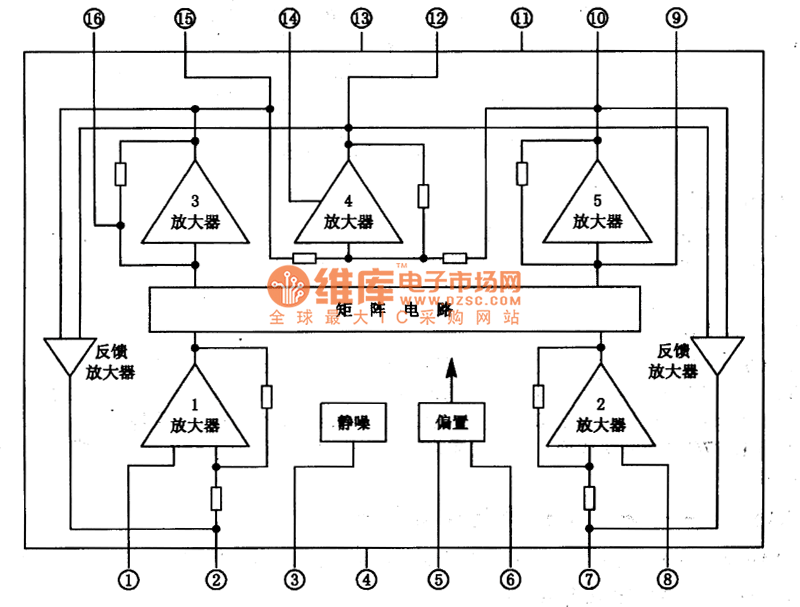

TA8106F is a dual track headset drive integrated circuit produced by Toshiba Company,and it is applied to mini,thin radio or cassette and recording radio as low-power drive circuit.1.The inner circuit and function of pins of TA8106FThe inner circuit of TA8106F integrated package includes two audio preamplifier premagnification circuits of same function,matrix power drive circuit,squelch circuit,biasing circuit,feedback amplifier circuit and so on.The inner circuit of the integrated package is shown as picture 1.This IC adopts dual inline 16 pinned flat package.
