TDA6120Q--the video output amplifier circuit

Published:2011/6/25 5:18:00 Author:qqtang | Keyword: video, output amplifier | From:SeekIC

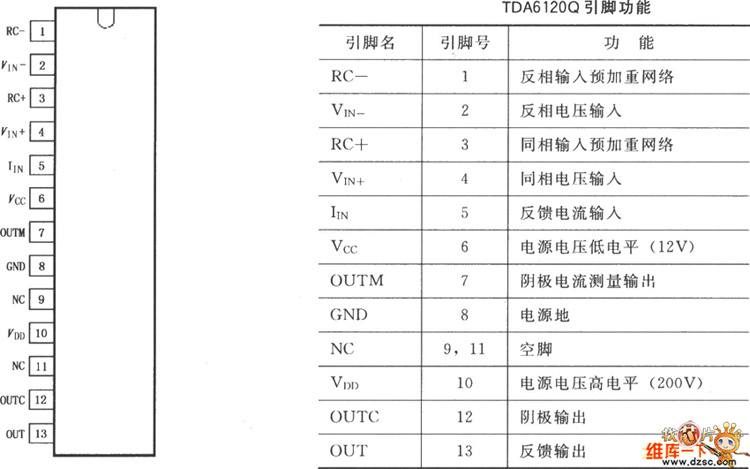

TDA6120Q is a single video output amplifier of 32MHz and 125VP-P, which is in plastic DIL and curve SIL power package, its high voltage DMOS technology can drive the passive pole of the color CRT, it can be used in high definition TVs or monitors. TDA6120Q has the fast passive pole test output of the dark current circuit, when output signal is 60v (peak value), the small signal wide band is 47MHz(typical value). TDA6120Q has a high power PSRR, whose maximum gain is over 46dB. The pin arrangement and functions of TDA6120Q are shown in the figure.
