TDA7263AM, TDA7263M two-channel audio power amplifier integrated circuit diagram

Published:2011/5/4 3:22:00 Author:Ecco | Keyword: two-channel, audio , power amplifier, integrated circuit | From:SeekIC

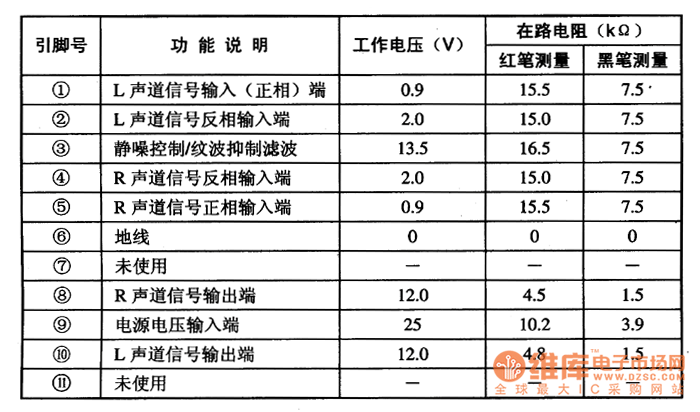

TDA7263M is the two-channel audio power amplifier integrated circuit produced by Philips, it is widely used in Haier, Konka series of large-screen color TV. 1. The features of functions TDA7263M IC includes two power amplifier circuits with the same functions, squelch control circuit, over-cooked and short circuit protection circuit. Per channel output power is 8W. 2. Pin functions and data TDA7263M IC uses 11 pin single in-line package, the pin functions and data are listed in Table 1. Table 1 shows TDA7263M pin function and data. Note: The main difference between TDA7263AM and TDA7263M is that the functions of output power and pin ③ are different.
