TDA7266 two-channel audio power amplifier integrated circuit diagram

Published:2011/5/4 3:08:00 Author:Ecco | Keyword: two-channel , audio, power amplifier, integrated circuit | From:SeekIC

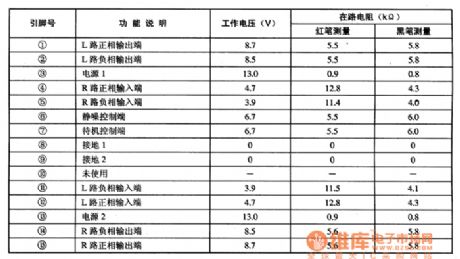

TDA7266 is the two-channel audio power amplifier integrated circuit produced by Philips, it is widely used in hi-fi system, such as TV audio, home theater, multi-media off audio, car audio and so on. 1. The features of functionsTDA7266 integrated circuit includes two identical audio power amplifier circuit, the squelch control circuit, the standby control circuit, and overheat protection and short circuit protection circuit. 2. Pin functions and data TDA7266 IC uses package with 15 pin in single row, the pin functions and data are listed in Table 1. Table 1 TDA7266 shows integrated circuit pin functions and data.
