The circuit of measuring bridge amplifier

Published:2012/10/9 22:25:00 Author:Ecco | Keyword: Measuring bridge , amplifier | From:SeekIC

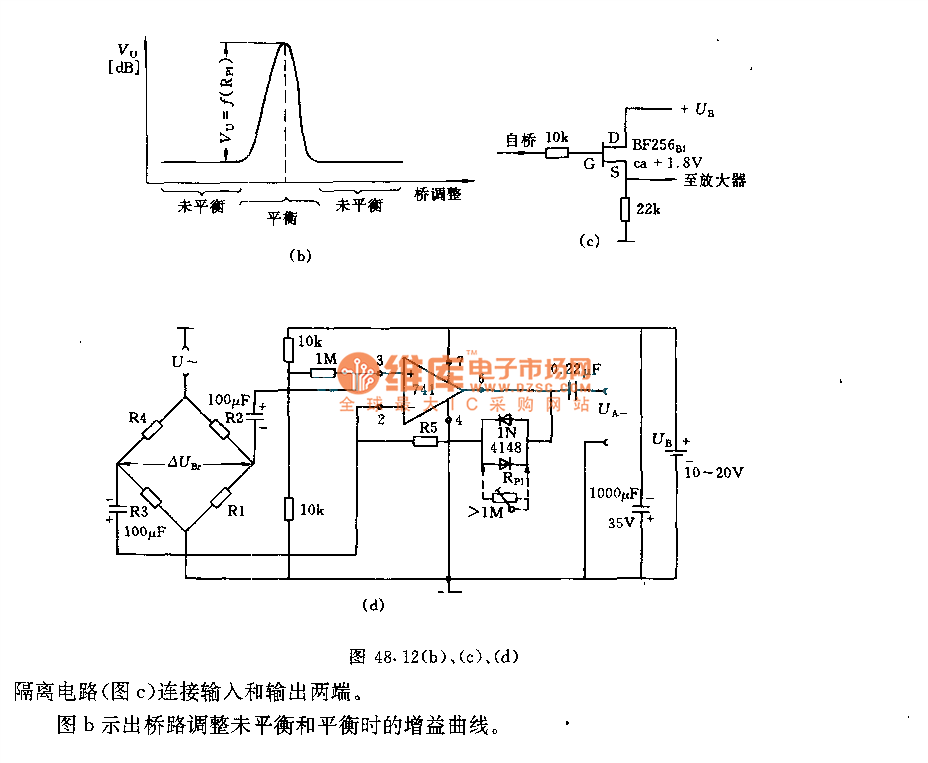

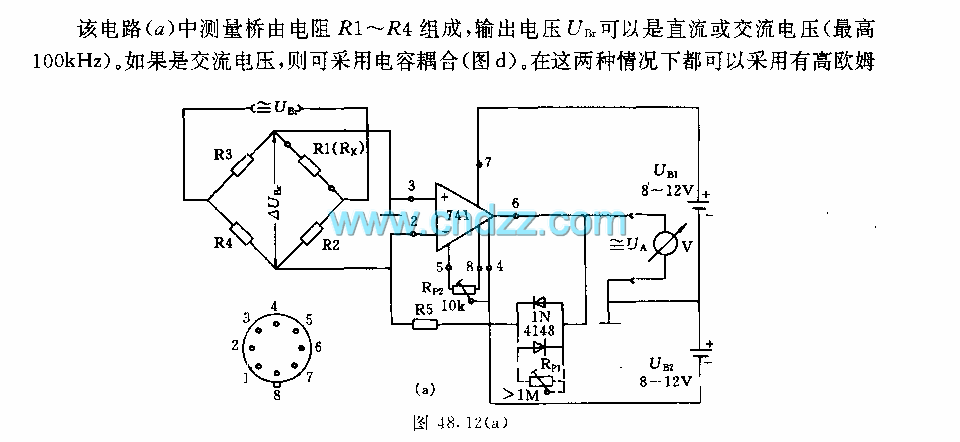

The measurement circuit shown in figure a is composed of resistors R1 ~ R4, the output voltage UBr may be DC or AC voltage ( up to 100kHz), if it is AC voltage, it can use capacitive coupling (Figure d ). In both cases, it can use high ohmic isolation circuit (Figure c) to connect to the input and output ends. Figure b shows unbalanced and balanced adjustment gain curve of bridge circuit.
