The edge detection circuit using NAND gate

Published:2011/8/8 0:17:00 Author:Sophia | Keyword: edge detection circuit, NAND gate | From:SeekIC

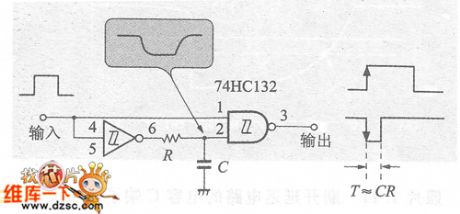

This circuit is the rising edge detection circuit using the NAND gate previously described, and circuit edge of the output pulse amplitude as T ≈ RC, IC threshold voltage CMOS, T ≈ 0.7RC. In this circuit, when the input is L , the terminal voltage charge of capacitor C is voltage yDD and becomes high level H . When the input is H , before the C terminal voltage reaches y (T = RC), the output level is L . The figure is the input and output waveform of the edge detection circuit. 10pμs negative pulse will be got since the input begins to rise.
