Triangle_wave_to_sine_wave_converter

Published:2009/7/25 1:16:00 Author:Jessie | From:SeekIC

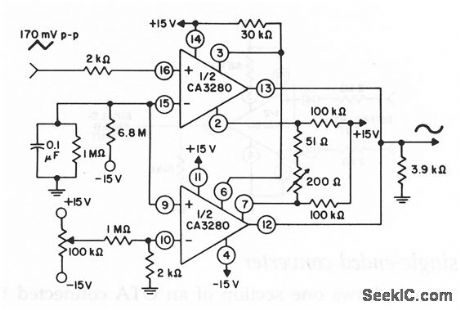

This circuit shows a triangle-wave to sine-wave converter using two sections of an OTA. Two 100-kΩ resistors are connected between the differential-amplifier emitters and U+ to reduce the current flow through the differential amplifier. This allows the amplifier to fully cut off during peak input-signal excursions. THD is about 0.37%.
