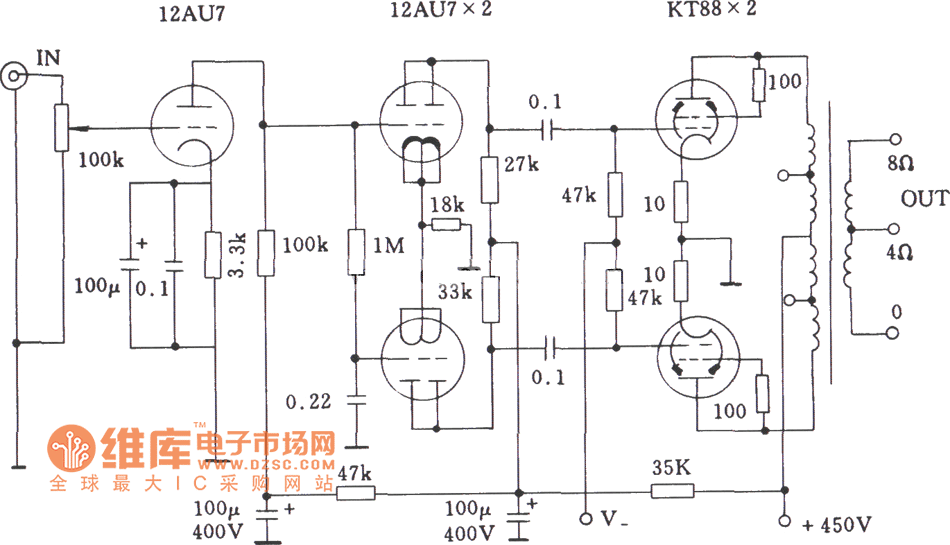

Tubes Tauro VAA 70 power amplifier circuit diagram

Published:2012/9/13 22:18:00 Author:Ecco | Keyword: Tubes Tauro , power amplifier | From:SeekIC

Tubes Tauro VAA 70 amp's primary of output transformer has two sets of taps which can be configured in two configurations: the first is the triode connection with high fidelity, stable performance, and its output power is 30W; the second is the ultra - linear connection with high working efficiency, the output power is 60W.
