VIDEO_DISTRIBUTION_AMPLIFIER

Published:2009/7/14 22:26:00 Author:Jessie | From:SeekIC

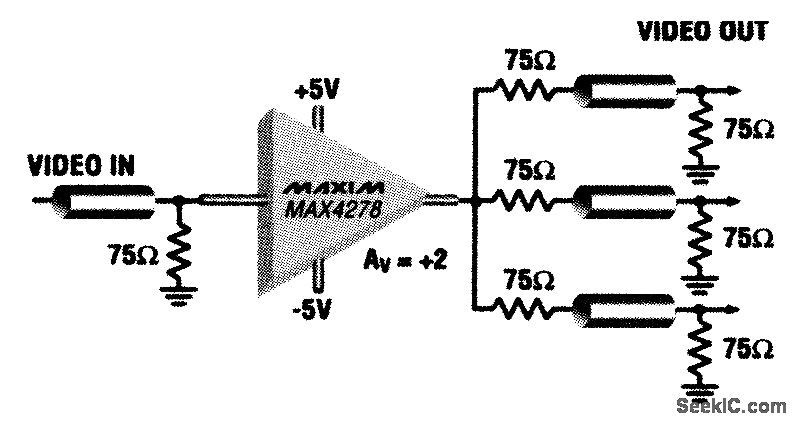

This video distribution amplifier uses a single MAX4278 with a gain of 2 (6 dB) so that three 75-Ω loads can be driven from one 75-Ω source. Each driven load has a source impedance of 75Ω. Gain is flat to 0.1 dB up to 150 MHz.
