VOLTAGE_LEVEL_TRIGGER

Published:2009/7/21 8:00:00 Author:Jessie | From:SeekIC

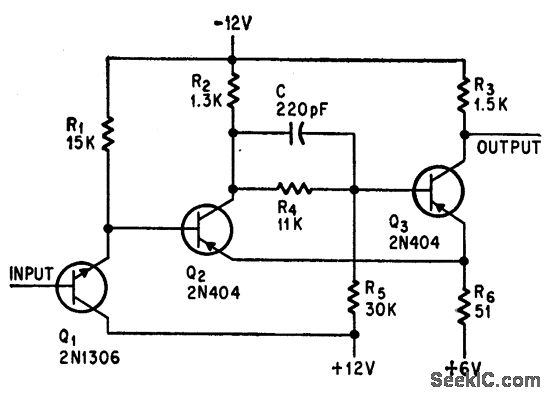

Output pulse appears when input is 6.0 v but not for inputs up to 7 volts above or below this level. Circuit then continues on until input drops below 5.4 v.-R. F. Woody, Precise 6-Volt Input Triggers Circuit, Electronics, 38:14, p 80.
