tda2030 btl amplifier circuit diagram

Published:2011/3/30 22:00:00 Author:Ecco | Keyword: amplifier | From:SeekIC

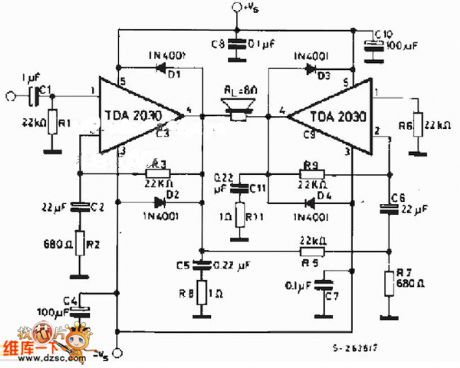

tda2030 btl amplifier circuit diagram is as below. The power amplifier of BTL, its main featuresare under the same power supply voltage and the load resistance condition, it can receive higher output power than OCL or OTL circuits.
