107_MHz_IF_amplifier_using_a_3N204_dual_gate_MOSFET

Published:2009/7/20 22:21:00 Author:Jessie | From:SeekIC

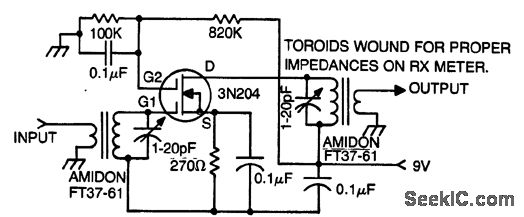

10.7 MHz IF amplifier using a 3N204 dual-gate MOSFET (courtesy Texas Instruments Incorporated).
