10_MHz_RF_amplifier_using_an_ECG703A_IC

Published:2009/7/20 6:29:00 Author:Jessie | From:SeekIC

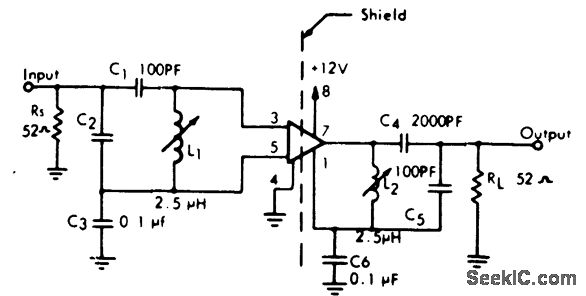

10 MHz RF amplifier using an ECG703A IC. The input signal is coupled to the amplifier through tank L1-C1-C2, tuned to 10 MHz. The capacitive divided C1-C2 provides impedance matching. Network L2-C4-C5 connects the amplifier to the load. A shield should be used between the input and output to prevent oscillations (courtesy GTE Sylvania Incorporated).
