10_W_SINGLE_ENDED_PUSH_PULL_OUTPUT

Published:2009/7/14 22:18:00 Author:Jessie | From:SeekIC

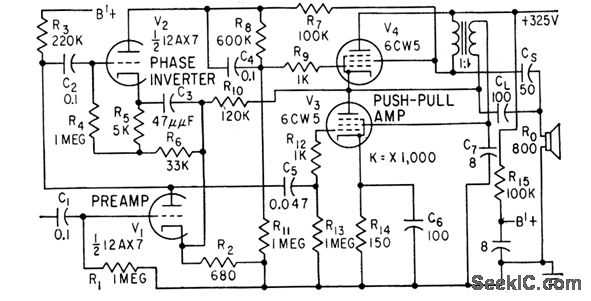

Feeds voice coil directly, making output transformer unnecessary. First preamplifying stage has positive feedback to point ofoscillation, while amplifier and output stages have negative feedback. Circuit haslow distortion, fiat response, and only a few degrees of phase shift over audio range.-J. Rodrigues De Miranda, Push. Pull Amplifiers Drive Speaker Directly,Electronics, 31:29, p 76-79.
